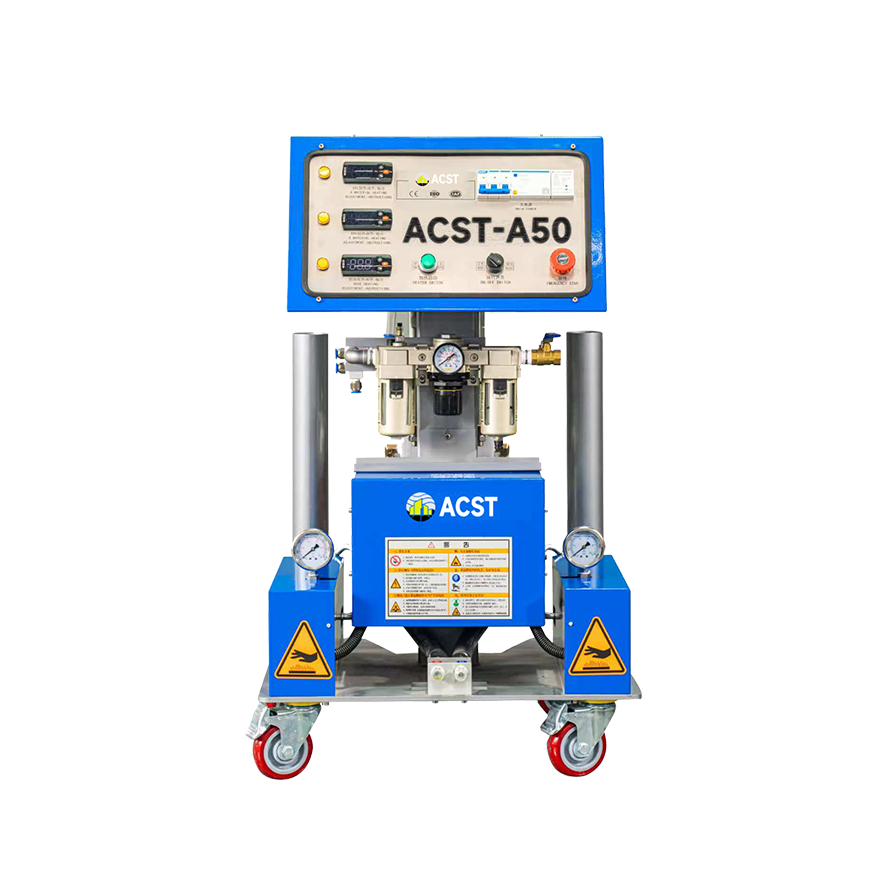

ACST-A50 Portable Slab Lifting Pump Machine 1:1 Polyurethane
$4,200.00
$5,500.00
Pickup currently not available
Details
- Compact & Lightweight — Easy to move and operate with low failure rate for consistent performance.
- Pneumatic Directional Control — Simple, stable design works reliably even without electricity, extending electrical parts’ lifespan by 50%.
- Precise Temperature Control — Imported sensors and multi-cylinder heating ensure faster, uniform heating, boosting efficiency and lowering raw material costs.
- User-Friendly Panel — Intuitive operation for full machine control and ease of use.
- Reliable & Safe — New pressurization system ensures fixed output ratios and higher yield; equipped with overheating protection and premium imported parts. Includes 1-year warranty and lifetime maintenance.
Includes
- A-50 Slab Lifting Pump Machine

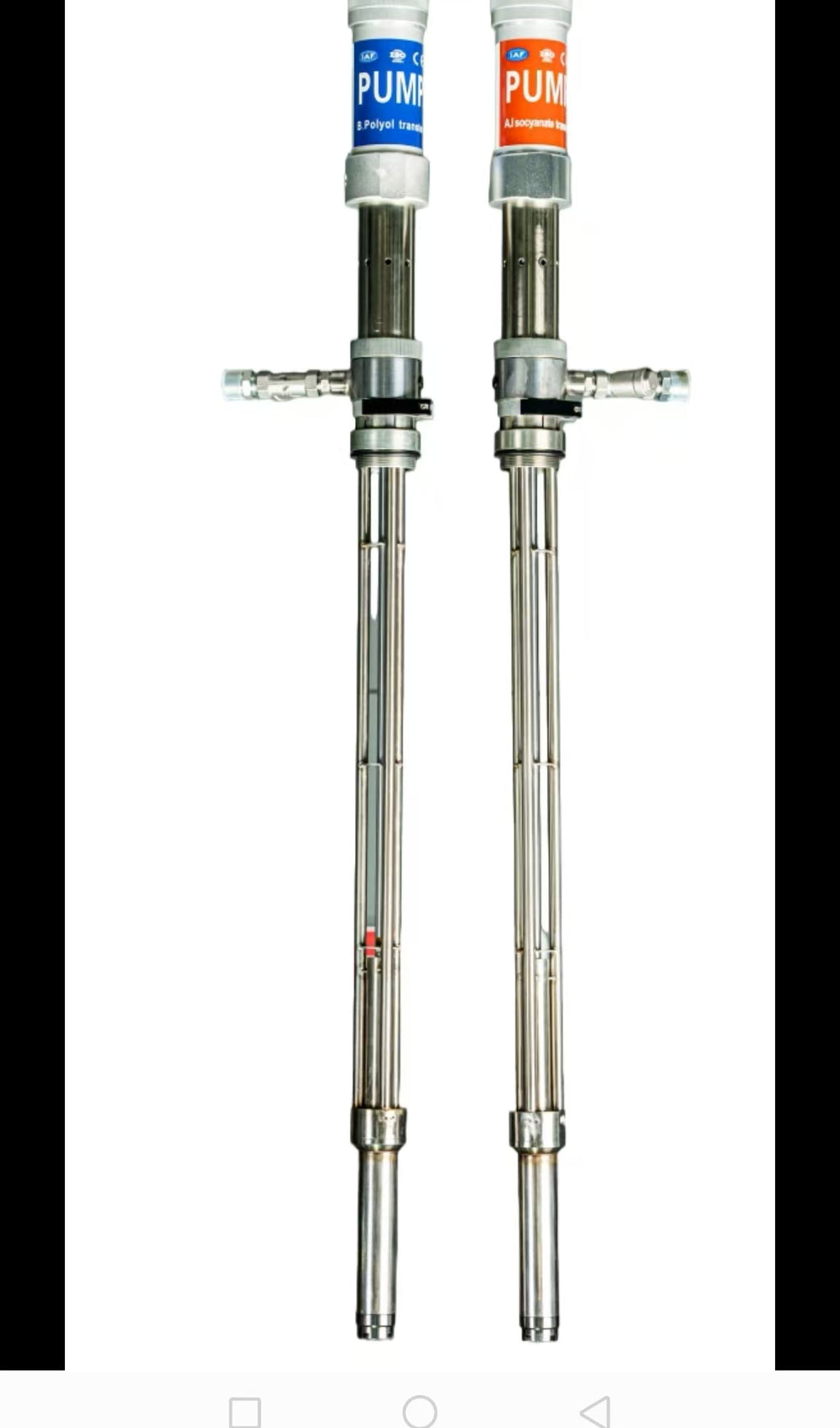

- Dedicated Material Transfer Pump x2

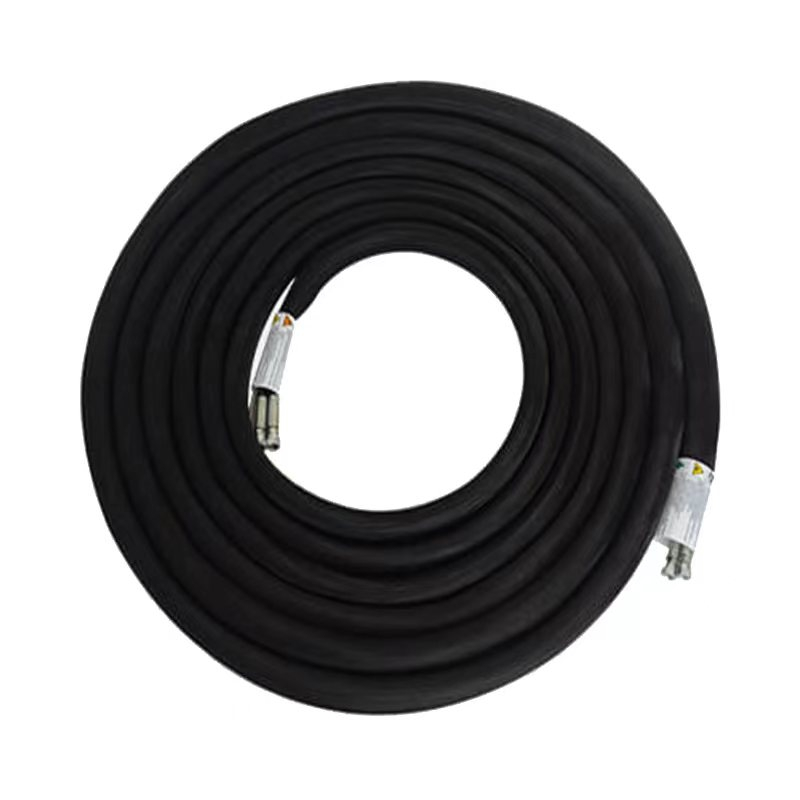

- Heated Hose(15Mx1）
- Toolbox x1
- Maintenance Kit（3 bottles/set）
Shipping & Returns
- Free shipping
- Domestic Shipping: [Us/Canada] Delivery 3 to 9 working days
- International Shipping: [Worldwide] Delivery 5 to 31 days
- 30-Day Money Back Guarantee
Specifications
- Compact and Precise Delivery
The ACST-A50 is a lightweight, portable polyurethane injection machine featuring an accurate 1:1 material ratio and a maximum working pressure of 15MPa. Equipped with an 8kW efficient heating system and a material output rate of 4–8kg/min, it’s ideal for slab lifting, insulation, and injection tasks. Pneumatic-driven and requiring only 0.6–0.8MPa air pressure, it operates reliably even in electricity-free or remote environments.
- Intelligent Design for Efficiency and Stability
The machine uses a pneumatic directional control assembly that surpasses traditional electromagnetic switching, extending the lifespan of electrical components by 50%. Multi-cylinder heating combined with imported sensors ensures faster, more uniform heating, reducing material waste. The user-friendly control panel makes operation simple, while the upgraded pressurization system guarantees a fixed output ratio, improving product yield. Built-in overheating protection enhances operational safety and stability.
- Wide Applications and Lifetime Support
Suitable for concrete structures, villa interiors and exteriors, tanks, cushioning packaging, farms, aluminum doors and windows, molds, containers, automobiles, grain silos, thermal pipelines, cold storage, wooden houses, stage props, ship cabins, roofing spraying and injection, and more. ACST offers a one-year warranty on the main unit and lifetime maintenance, ensuring long-term, worry-free operation.
| Specifications | |
|---|---|
| Material Ratio | 1:1 |
| Maximum Working Pressure | 15MPa |
| Heating Power | 8KW |
| Material Output Flow | 4~8Kg/min |
| Compressed Air Source | 0.6~0.8MPa 1m³/min |
| Drive Method | Pneumatic Drive |
